首页 > 供应产品 > 德国进口宝德 BURKERT 8031 在线式流量控制变送器 低流量

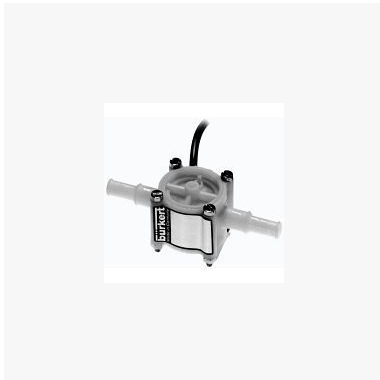

德国进口宝德 BURKERT 8031 在线式流量控制变送器 低流量
点击图片查看原图
产品: 浏览次数:212德国进口宝德 BURKERT 8031 在线式流量控制变送器 低流量
单价: 6500.00元/台
最小起订量: 5 台
供货总量: 999 台
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2018-09-01 11:28
  询价

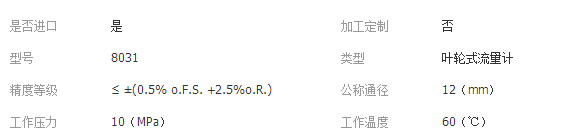

详细信息

深圳市正壹自动化技术有限公司代理销售德国进口宝帝流量控制变送器等全系列产品

Flow sensor for continuous low-flow
measurement and batch control

• Cost attractive solution for low-flow rates and solid-free liquids
• Wetted parts made of ECTFE (Halar®), Saphir,
COREPOINT™, FKM or EPDM for use in aggressive liquids
• 3-wire system with paddle-wheel and Hall sensor up to 80 °C, 6 bar
• Frequency output proportional to the flow rate, PLC-compatible

The compact low-flow sensor Type 8031 with
paddle-wheel and Hall sensor is specially designed
for use in aggressive and solid-free liquids.
The particular cost attractive measuring principle
is based on a local flow velocity measurement.
The sensor produces a flow proportional frequency
signal which can easily be transmitted
and processed.
We recommend here particularly the connection
to the Bürkert Universal transmitter Type 8025
(see separate data sheet).

General data
Materials
Housing, Paddle-wheel
Axis
Bearings
Magnets
Seal
POM or ECTFE (Halar®)
COREPOINT™ or sapphire
POM or Rubin
ECTFE (Halar®) encapsuled or blank
FKM, EPDM or FFKM
Electrical connections Cable, 1 m length (3 x 0.14 LiYY)
Process connection G1/4” or Tube spigot 8/6 or 9 mm
Measuring range 10 to 100 l/h (2.6 to 27 gph)
20 to 250 l/h (5.3 to 66 gph)
K-factor 10200 pulse/litre (range 10 to 100 l/h)
3400 pulse/litre (range 20 to 250 l/h)
Fluid temperature 0 to 80 °C
Fluid pressure max. 6 bar at 20 °C
Accuracy ± 2% o. FS*
Repeatability 0.8% o. FS*
Viscosity 1 to 10 cSt.
Electrical data
Power supply (V+) 5...24 V DC
Current consumption max. 11 mA at 24 V DC
Output push-pull (complementary output) between V+ (white wire) and
signal (green wire) or between GND (brown wire) and signal
(green wire)
Frequency 0 to 300 Hz
Environment
Ambient temperature 0 up to +80 °C
Storage temperature -10 up to +80 °C
Standards and approvals
Protection class IP65

Without mounting plate Frequency
push-pull
10 to 100 l/h Tube spigot 8/6 mm POM COREPOINT™ FKM 783 717
G 1/4” POM COREPOINT™ FKM 783 719
20 to 250 l/h Tube spigot 9 mm POM COREPOINT™ FKM 783 718
G 1/4” POM COREPOINT™ FKM 783 720
With mounting plate Frequency
push-pull
10 to 100 l/h G 1/4” ECTFE Sapphire FKM 783 721
G 1/4” ECTFE Sapphire EPDM 783 722
G 1/4” ECTFE Sapphire FFKM 783 723
20 to 250 l/h G 1/4” ECTFE Sapphire FKM 783 724
G 1/4” ECTFE Sapphire EPDM 783 725
G 1/4” ECTFE Sapphire FFKM 783 726
10 to 100 l/h G 1/4” ECTFE COREPOINT™ FKM 437 982
G 1/4” ECTFE COREPOINT™ EPDM 438 531
20 to 250 l/h G 1/4” ECTFE COREPOINT™ FKM 438 532
G 1/4” ECTFE COREPOINT™ EPDM 437 524
