Y 系列三相异步电动机
|
|
型号
|
功率
|
电流 (A)
|
电压(V)
|
转速(r/min)
|
效率(%)
|
功率因数
|
堵转转矩/额定转矩
|
堵转电流/额定电流
|
最大转矩/额定转矩
|
|
HP
|
KW
|
|
Y801-2
|
1
|
0.75
|
1.8
|
380
|
2830
|
75
|
0.84
|
2.2
|
6.5
|
2.3
|
|
Y802-2
|
1.5
|
1.1
|
2.5
|
380
|
2830
|
77
|
0.86
|
2.2
|
7.0
|
2.3
|
|
Y801-4
|
3/4
|
0.55
|
1.5
|
380
|
1390
|
73
|
0.76
|
2.2
|
6.0
|
2.3
|
|
Y802-4
|
1
|
0.75
|
2.0
|
380
|
1390
|
74.5
|
0.76
|
2.2
|
6.0
|
2.3
|
|
Y90S-2
|
2
|
1.5
|
3.4
|
380
|
2840
|
78
|
0.85
|
2.2
|
7.0
|
2.3
|
|
Y90L-2
|
3
|
2.2
|
4.7
|
380
|
2840
|
80.5
|
0.86
|
2.2
|
7.0
|
2.3
|
|
Y90S-4
|
1.5
|
1.1
|
2.8
|
380
|
1400
|
78
|
0.78
|
2.3
|
6.5
|
2.3
|
|
Y90L-4
|
2
|
1.5
|
3.7
|
380
|
1400
|
79
|
0.79
|
2.3
|
6.5
|
2.3
|
|
Y90S-6
|
1
|
0.75
|
2.3
|
380
|
910
|
72.5
|
0.70
|
2.0
|
5.5
|
2.2
|
|
Y90L-6
|
1.5
|
1.1
|
3.2
|
380
|
910
|
73.5
|
0.72
|
2.0
|
5.5
|
2.2
|
|
Y100L-2
|
4
|
3
|
6.4
|
380
|
2870
|
82
|
0.87
|
2.2
|
7.0
|
2.3
|
|
Y100L1-4
|
3
|
2.2
|
5.0
|
380
|
1430
|
81
|
0.82
|
2.2
|
7.0
|
2.3
|
|
Y100L2-4
|
4
|
3
|
6.8
|
380
|
1430
|
82.5
|
0.81
|
2.2
|
7.0
|
2.3
|
|
Y100L-6
|
2
|
1.5
|
4.0
|
380
|
940
|
77.5
|
0.74
|
2.0
|
6.0
|
2.2
|
|
Y112M-2
|
5.5
|
4
|
8.2
|
380
|
2890
|
85.5
|
0.87
|
2.2
|
7.0
|
2.3
|
|
Y112M-4
|
5.5
|
4
|
8.8
|
380
|
1440
|
84.5
|
0.82
|
2.2
|
7.0
|
2.3
|
|
Y112M-6
|
3
|
2.2
|
5.6
|
380
|
940
|
80.5
|
0.74
|
2.2
|
6.0
|
2.2
|
|
Y132S1-2
|
7.5
|
5.5
|
11.1
|
380
|
2900
|
85.5
|
0.88
|
2.0
|
7.0
|
2.3
|
|
Y132S2-2
|
10
|
7.5
|
15.0
|
380
|
2900
|
86.2
|
0.88
|
2.0
|
7.0
|
2.3
|
|
Y132S-4
|
7.5
|
5.5
|
11.7
|
380
|
1440
|
85.5
|
0.84
|
2.2
|
7.0
|
2.3
|
|
Y132M-4
|
10
|
7.5
|
15.4
|
380
|
1440
|
87
|
0.85
|
2.0
|
7.0
|
2.3
|
|
Y132S-6
|
4
|
3
|
7.2
|
380
|
960
|
83
|
0.76
|
2.0
|
6.5
|
2.2
|
|
Y132M1-6
|
5.5
|
4
|
9.4
|
380
|
960
|
84
|
0.77
|
2.0
|
6.5
|
2.2
|
|
Y132M2-6
|
7.5
|
5.5
|
12.6
|
380
|
960
|
85.3
|
0.78
|
2.0
|
6.5
|
2.2
|
|
Y160M1-2
|
15
|
11
|
21.8
|
380
|
2930
|
87.2
|
0.88
|
2.0
|
7.0
|
2.2
|
|
Y160M2-2
|
20
|
15
|
29.4
|
380
|
2930
|
88.2
|
0.88
|
2.0
|
7.0
|
2.2
|
|
Y160L-2
|
25
|
18.5
|
35.5
|
380
|
2930
|
89
|
0.89
|
2.0
|
7.0
|
2.2
|
|
Y160M-4
|
15
|
11
|
22.6
|
380
|
1460
|
88
|
0.84
|
2.2
|
7.0
|
2.2
|
|
Y160L-4
|
20
|
15
|
30.3
|
380
|
1460
|
88.5
|
0.85
|
2.2
|
7.0
|
2.2
|
|
Y160M-6
|
10
|
7.5
|
17.0
|
380
|
970
|
86
|
0.78
|
2.0
|
6.5
|
2.0
|
|
Y160L-6
|
15
|
11
|
24.6
|
380
|
970
|
87
|
0.78
|
2.0
|
6.5
|
2.0
|
|
Y180M-2
|
30
|
22
|
42.2
|
380
|
2940
|
89
|
0.89
|
2.0
|
7.0
|
2.2
|
|
Y180M-4
|
25
|
18.5
|
35.9
|
380
|
1470
|
91
|
0.86
|
2.0
|
7.0
|
2.2
|
|
Y180L-4
|
30
|
22
|
42.5
|
380
|
1470
|
91.5
|
0.86
|
2.0
|
7.0
|
2.2
|
|
Y180L-6
|
20
|
15
|
31.6
|
380
|
970
|
89.5
|
0.81
|
1.8
|
6.5
|
2.0
|
|
Y200L1-2
|
40
|
30
|
56.9
|
380
|
2950
|
90
|
0.89
|
2.0
|
7.0
|
2.2
|
|
Y200L2-2
|
50
|
37
|
69.8
|
380
|
2950
|
90.5
|
0.89
|
2.0
|
7.0
|
2.2
|
|
Y200L-4
|
40
|
30
|
56.8
|
380
|
1470
|
92.2
|
0.87
|
2.0
|
7.0
|
2.2
|
|
Y200L1-6
|
25
|
18.5
|
37.7
|
380
|
970
|
89.8
|
0.83
|
1.8
|
6.5
|
2.0
|
|
Y200L2-6
|
30
|
22
|
44.6
|
380
|
970
|
90.2
|
0.83
|
1.8
|
6.5
|
2.0
|
外形及安装尺寸：
机座号 |
安装尺寸(mm)
|
外形尺寸(mm)
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
HD
|
HE
|
L
|
|
Y80
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
165
|
165
|
150
|
175
|
185
|
285
|
|
Y90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
175
|
155
|
795
|
795
|
310
|
|
Y90L
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
175
|
155
|
195
|
195
|
335
|
|
Y100L
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
215
|
180
|
250
|
0
|
15
|
4.0
|
205
|
205
|
180
|
245
|
245
|
380
|
|
Y112M
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
215
|
180
|
250
|
0
|
15
|
4.0
|
245
|
230
|
190
|
265
|
265
|
400
|
|
Y132S
|
216
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4.0
|
280
|
270
|
210
|
315
|
315
|
475
|
|
Y132M
|
216
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4.0
|
280
|
270
|
210
|
315
|
315
|
515
|
|
Y160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0
|
19
|
5.0
|
330
|
325
|
255
|
385
|
385
|
600
|
|
Y160L
|
254
|
254
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0
|
19
|
5.0
|
330
|
325
|
255
|
385
|
385
|
645
|
|
Y180M
|
279
|
241
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
0
|
19
|
5.0
|
355
|
360
|
285
|
430
|
430
|
670
|
|
Y180L
|
279
|
279
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
0
|
19
|
5.0
|
355
|
360
|
285
|
430
|
430
|
710
|
|
Y200L
|
318
|
305
|
133
|
55
|
110
|
16
|
49
|
200
|
19
|
350
|
300
|
400
|
0
|
19
|
5.0
|
395
|
400
|
310
|
475
|
475
|
775
|
|
特点：

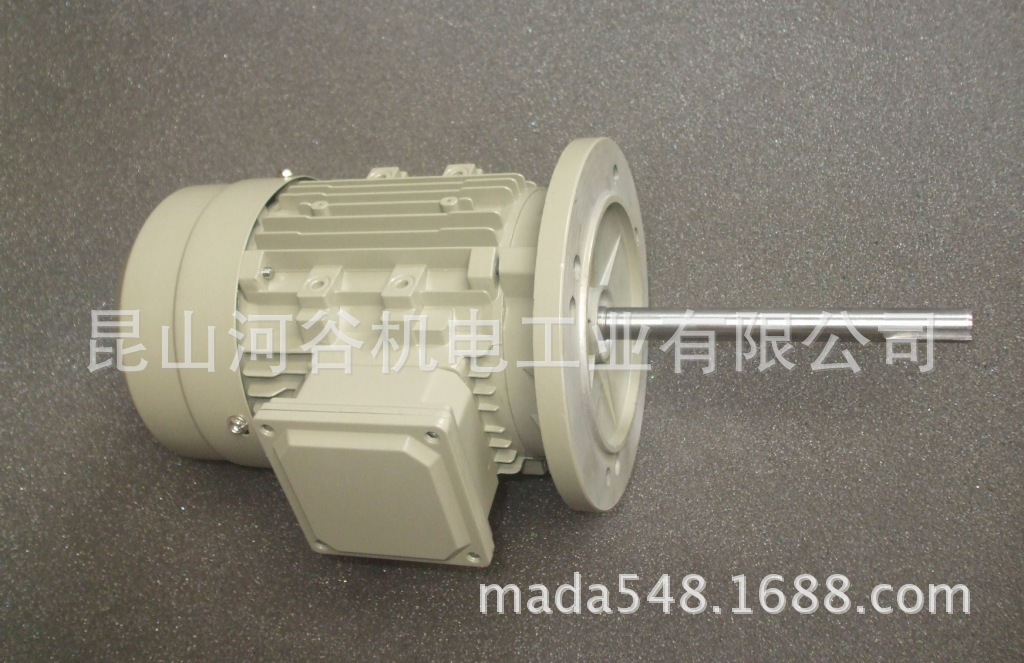

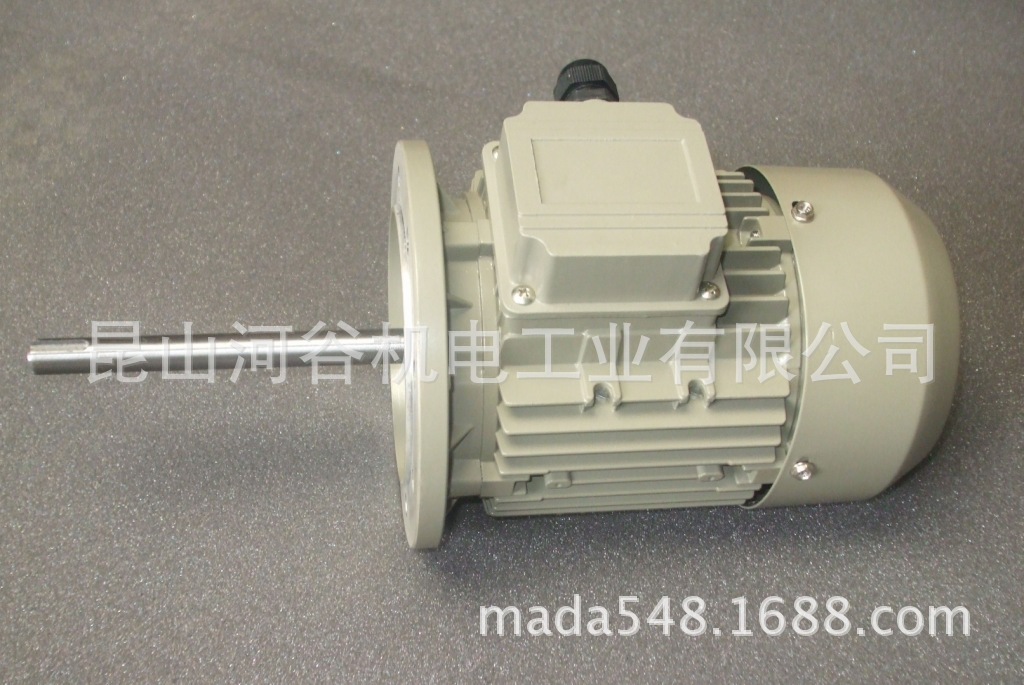

MS系列铝壳异步电动机，符合国际电工协会(IEC)有关规定，选用优质原材料，进行最新式整体设计，具有性能好、噪声低、振动小、运行安全可靠、外型美观、体积小、重量轻、结构简单、维修方便等优点。
MS系列电动机适用于各类电机设备上。
使用条件：
环境气温度：-15℃≤0≤40℃
海拨：不超过1000米
额定电压：380V,可选用220V-760V
额定频率：50Hz / 60Hz 绝缘等级：B / F / H级
防护等级：IP54、IP55 冷却方式：Ic0141
