适用于：

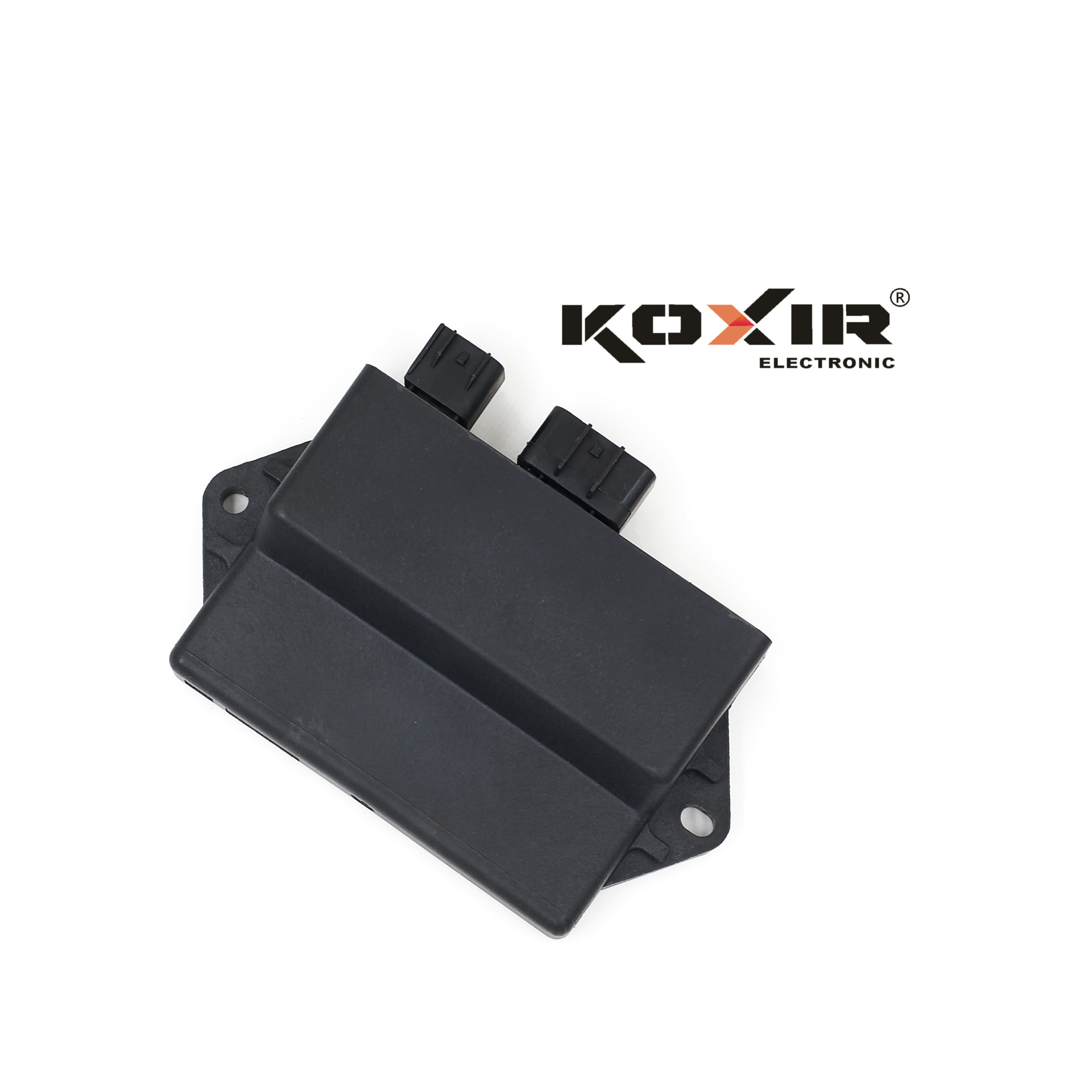

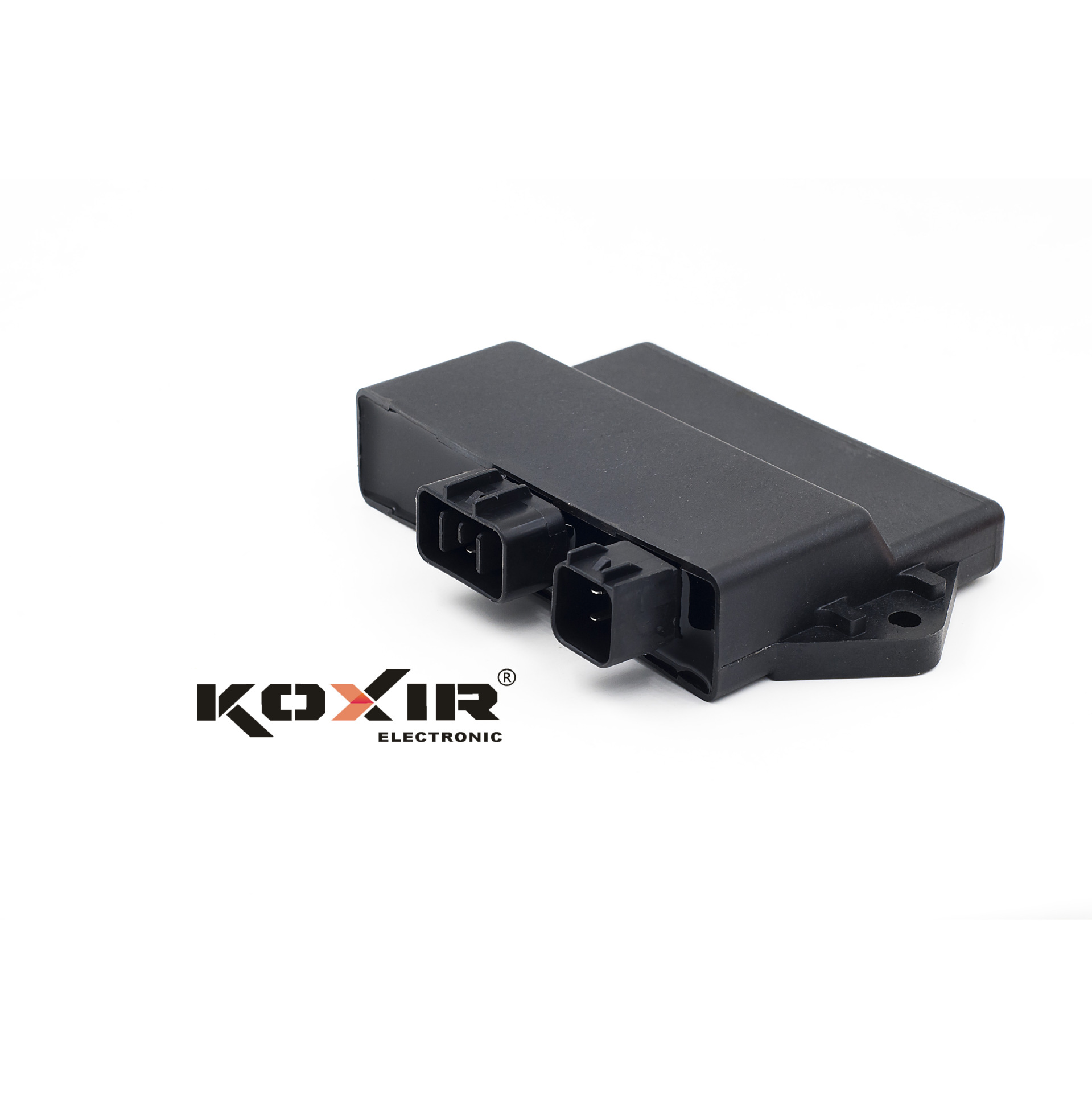

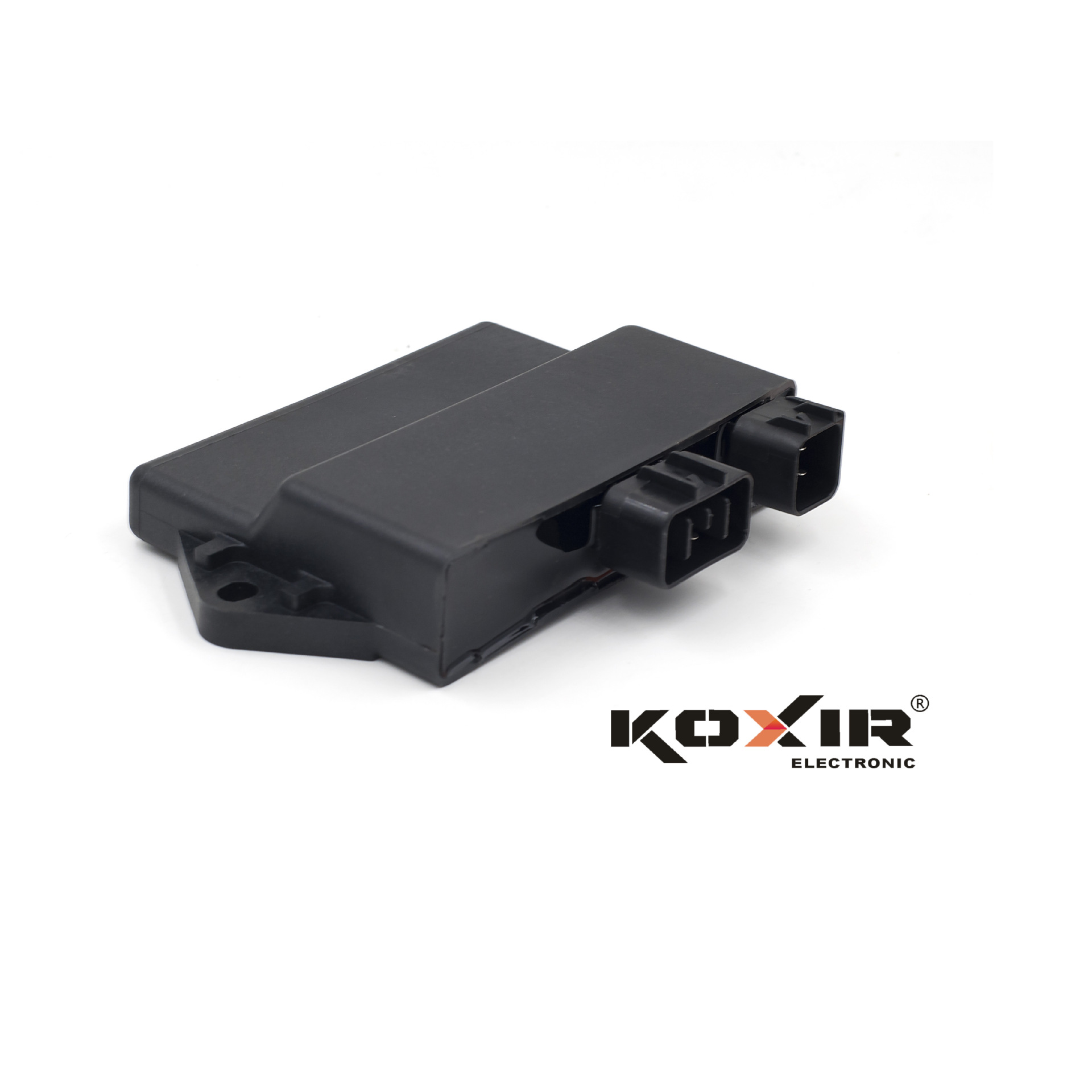

YAMAHA YFM 350直流数字进角点火器 DC Digital CDI
Net weight:280g
OEM:5NF-85540-00-00 5YT-85540-00-00
MODEL:Yamaha YFM 350 Raptor 2004-2013
Yamaha YFM 350 Warrior 2002-2004
Features
1.Digital ignition
2. Ignition energy and stability
3.Strong resistance to interference
4.Strong environment adaptation,high reliability
5.Stable inlet angle,low speed & high speed ignition performance
|
item |
index |
Remark |
|
Type |
Capacitor discharge |
|
|
Capacity of energy storage capacitor |
1.5μF |
|
|
Working voltage |
DC 8~16V |
|
|
Min. Rotate speed in continuous ignition |
≤210r/min |
|
|
Rotate speed range in continuous ignition |
210r/min—11000r/min |
|
|
Ignition inlet curve |
In graph |
|
|
Flameout function |
Flameout when SW end earthing |
|
|
Working temperature range |
-30~60 |
|

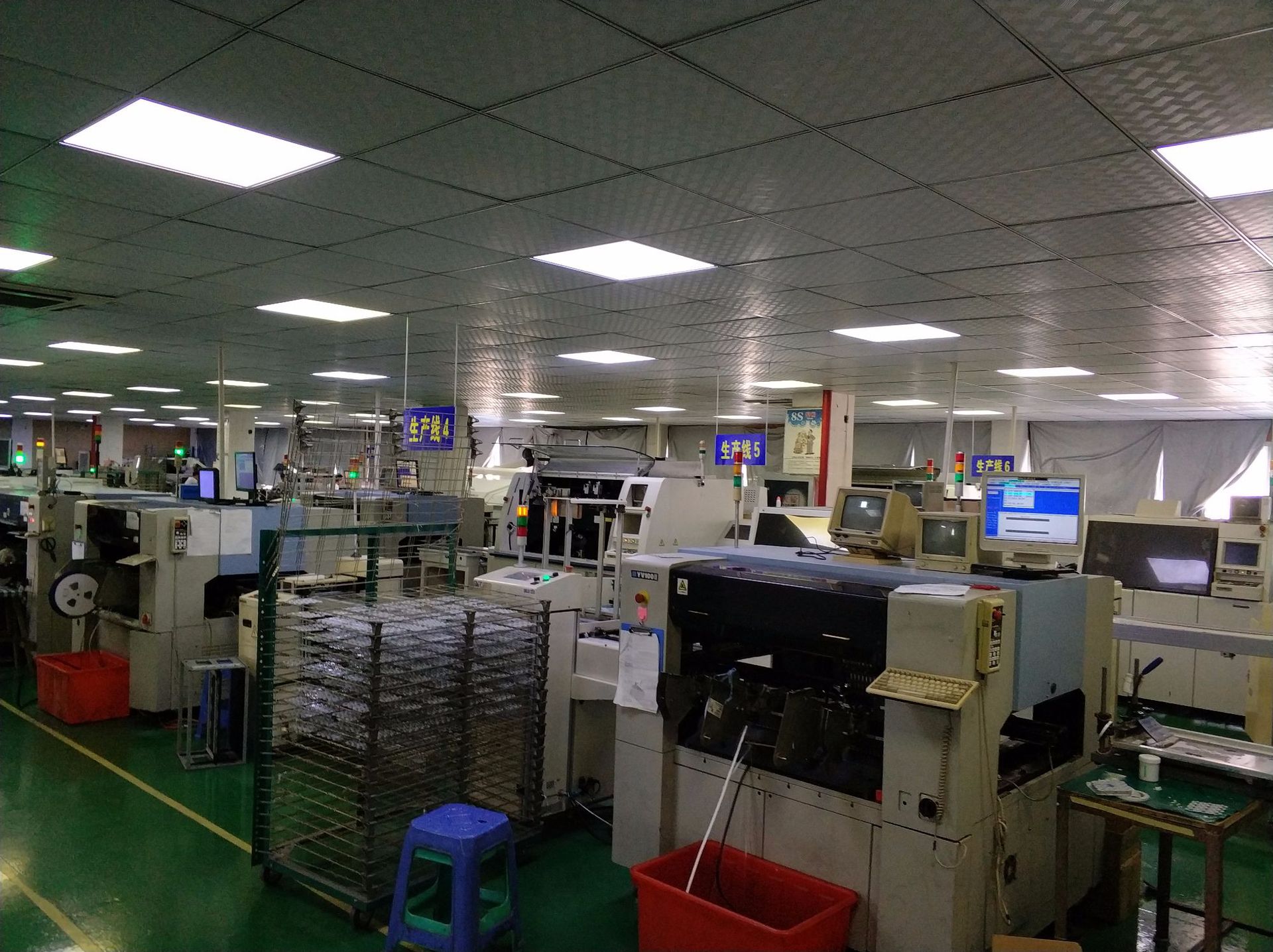

[工厂实拍]——《商标认证》
