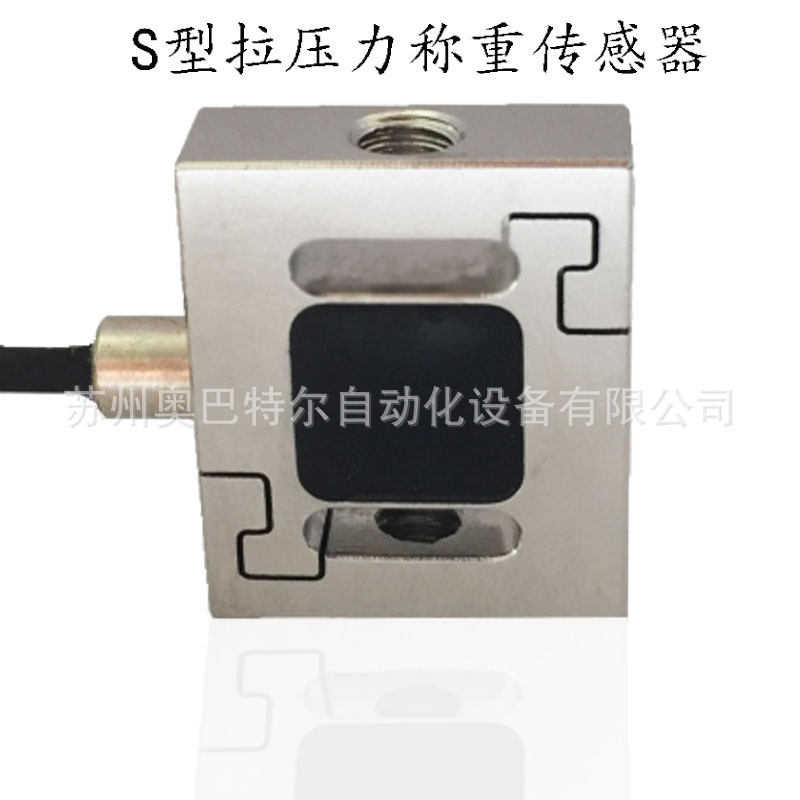

CL-BSM04称重传感器
S型传感器
优质铝合金材质
安装简便、快捷，稳定可靠
使用与材料试验机、配料秤、机电结合称和包装秤等
2kg,5kg,10kg,20kg
客户可以根据自己需求定制量程。
|
Rated Output |
额定输出 |
1.0~1.5mV/V±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.05% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Hysteresis |
滞后 |
±0.1% of rated output |
|
Repeatability |
重复性 |
±0.3% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-10℃to+70℃ |
|
Temp.Compensated |
温度补偿范围 |
-10℃to+30℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387Ω±20Ω |
|
Output Impedance |
输出阻抗 |
350Ω±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximum Excitation |
最大工作电压 |
10V DC/AC |
|
Protection Class |
防护等级 |
IP67 |
|
Construction |
电线 |
2m |
|
type |
型号说明 |
型号+‚量程+ƒ非标功能F(无非标则不需填写) 如：LSZ-BSM04/3kg |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
