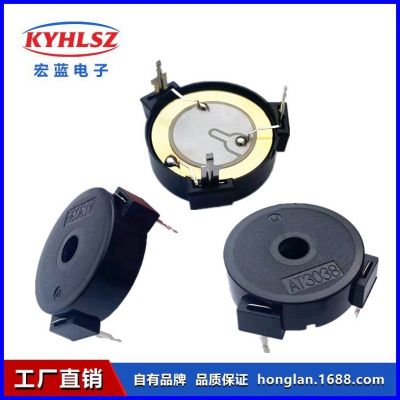

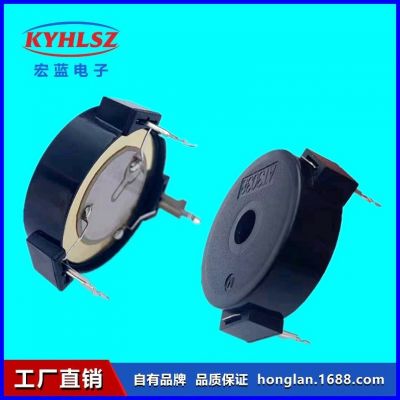

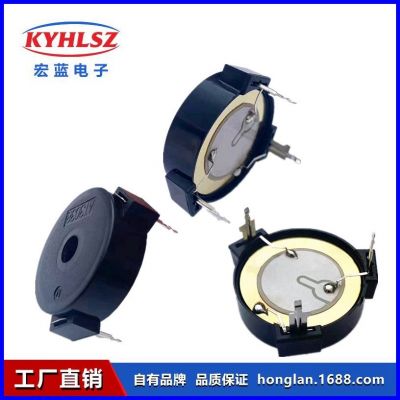

Product: Piezoelectric Buzzers |
A&T Part No：AT3038T3P |
|||||
|
Technical Terms |
||||||
|
Resonant Frequency (KHZ |
3.8±0.5 |
|||||
|
Rated Voltage (VDC) |
12 |
|||||
|
Operating Voltage (VDC) |
3~20 |
|||||
|
Max. Current Consumption at Rated Voltage (mA) |
20 |
|||||
|
Capacitance at 1000Hz (Pf) |
25000±30% |
|||||
|
Min. Sound Output at 10cm at Rated Voltage (dB) |
90 |
|||||
|
Operating Temperature (0C) |
-20~+60 |
|||||
|
Storage Temperature (0C) |
-30~+70 |
|||||
|
Housing Material |
ABS(Black) |
|||||
|
Environmental Protection Regulation |
RoHS |
|||||
|
Buzzer Soldering process |
Soldering Parameter |
|||||
|
Temp.( 0C) |
Time(Sec.) |
Times |
||||
|
Inclusive Lead |
|
Reflow soldering |
230±10 |
above 1700C time 40~70 |
2 |
|
|
|
Wave soldering |
245±5 |
3~6 |
1~2 |
||
|
|
Manual soldering |
330±10 |
1~2 |
1~2 |
||
|
Lead Free |
|
Reflow soldering |
245±15 |
above 1800C time 40~70 |
3 |
|
|
|
Wave soldering |
260±5 |
4~8 |
2~3 |
||
|
★ |
Manual soldering |
350±10 |
1~3 |
2~3 |
||
