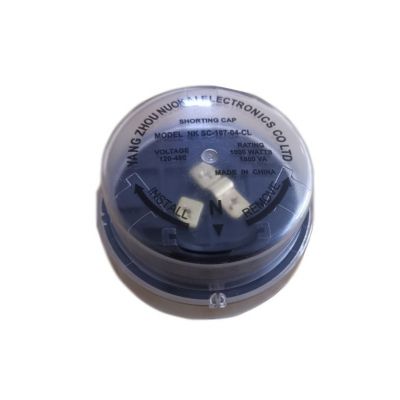

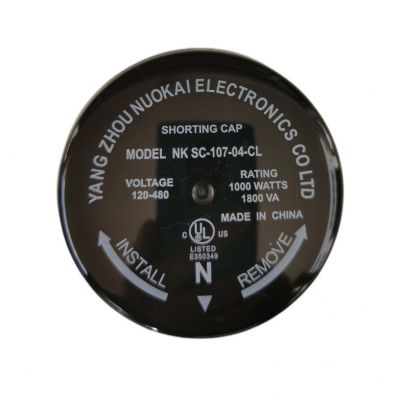

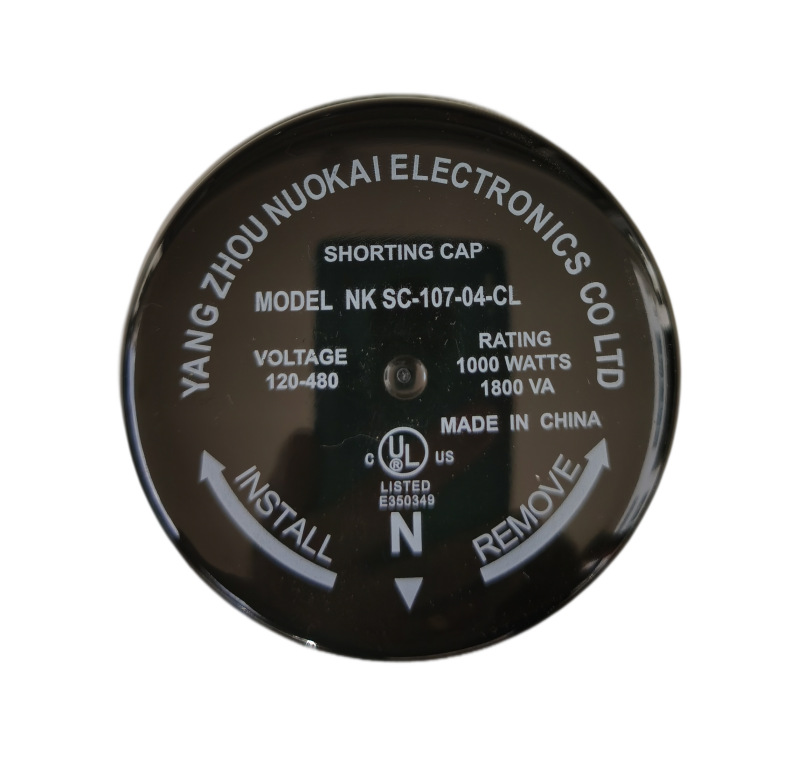

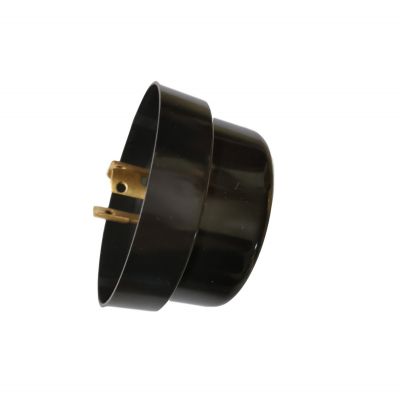

SHORTING AND OPEN CAPS
短路与开路帽
YANGZHOU NUOKAI ELECTRonICS CO LTD (NK) offers durable weather proof shorting and open caps. Common uses include designating fixtures for maintenance, keeping lights continually on for safety (shorting cap), or disconnecting service when lighting is no longer needed (open cap). 107& 109 caps provide a convenient and economical method to close or open the primary circuit with a NEMA locking type receptacle. The 107 model also incorporates a 545 Joule metal Oxide Varistor (MOV) that protects the cap and the luminaire from transient line surges. Designating ANSI housing comply with NEMA/ ANSI C136.10 specification. This unique housing makes it easier for users to distinguish visually between a standard photo‐control and a shorting or open cap.
扬州诺凯电子有限公司为客户提供耐用的耐风雨的短路与开路接线解决方案，提供包括灯具维护、维修在内的便利性– 短路帽（107系列）的安装能使得电路保持持续的安全通电的状态，当需要切断时，可采用109系列开路帽产品使其线路得以切断。产品设计采用了NEMA标准规定的旋钮式自锁插座配套用的插片端子结构，为接通和切断临时的电路提供了便捷与经济性的解决方案。SC‐107‐04‐BL‐SP545 的设计加入了氧化锌压敏电阻浪涌保护器件，从而能够在短路帽与灯具遭受瞬态浪涌时为其提供浪涌保护。产品外壳的设计符合NEMA /ANSI C136.10 规范要求。独特的外壳设计为用户区分光控器产品与短路帽或开路帽提供了可视化的颜色区分。
NK SC系列短路/开路帽为安装有NEMA旋钮式插座的光控设备的前端电路导通或切断提供 了一种便捷而低廉的解决方案.
聚碳酸酯（PC）抗紫外线罩壳
高强度抗冲击丁二醇酯（PBT）基座
符合UL773/ANSI C136.10标准
产品有UL&CUL认证
